Specification

Prime Square Series Hyperbaric Oxygen Chamber The Prime Square Series is a premium medical-grade hyperbaric oxygen chamber platform engineered and manufactured by Barotech and available in the UK through Origin Oxygen. Featuring an innovative Square Edge architecture, the range moves away from the traditional cylindrical chamber profile to provide increased usable internal space, headroom and comfort while maintaining ``medical-grade pressure integrity.

Specifications

Product Range: Prime Square Series
Product Type: Medical-grade Hyperbaric Oxygen Chamber
Configurations: Available in 1, 2, 3 and 4-person configurations
Chamber Design: Barotech Square Edge architecture
Construction: Modular construction allowing disassembly and reassembly on site
Oxygen Delivery: Built-in Breathing System (BIBS) with dedicated inlet/outlet regulators, medical-grade masks and hoses
Oxygen Concentrators: Medical-grade oxygen concentrators delivering 95±1% purity, 20 L/min at 4 bar with automated start/stop
Piping: AISI 304 stainless steel piping throughout
Fire Suppression: NFPA 99 certified system with automatic and manual activation, dedicated water tank and detection
Automation: PLC-driven programmable dive tables, automated safety systems and treatment record logging
Control System: Dual automatic and manual operator control architecture
Monitoring: Two-way intercom and CCTV monitoring

Comfort & Interior Features

Individual Entertainment: 10-inch HBOT-compliant smart tablets with smart TV integration
Entertainment Support: Netflix, YouTube and Amazon integration per seat
Seating: Premium leather reclining seating with adjustable leg raise
Seat Features: Built-in armrest, cupholder and table
Colour Options: Premium seating available in 20 colour options
Climate Control: Water-chilled air conditioning with IP67-rated fan coils
Lighting: Ambient and main LED lighting

Safety & Engineering

Redundant Emergency Systems: Assistive and manual exit valves, safety relief valves and multiple failsafes
Breathing System: On-demand BIBS oxygen delivery system
Fire Protection: Dedicated automatic/manual hyperbaric fire suppression system
Automation: Programmable treatment controls and automated safety systems
Manual Control: Full manual operator control available alongside automated operation

Available Configurations

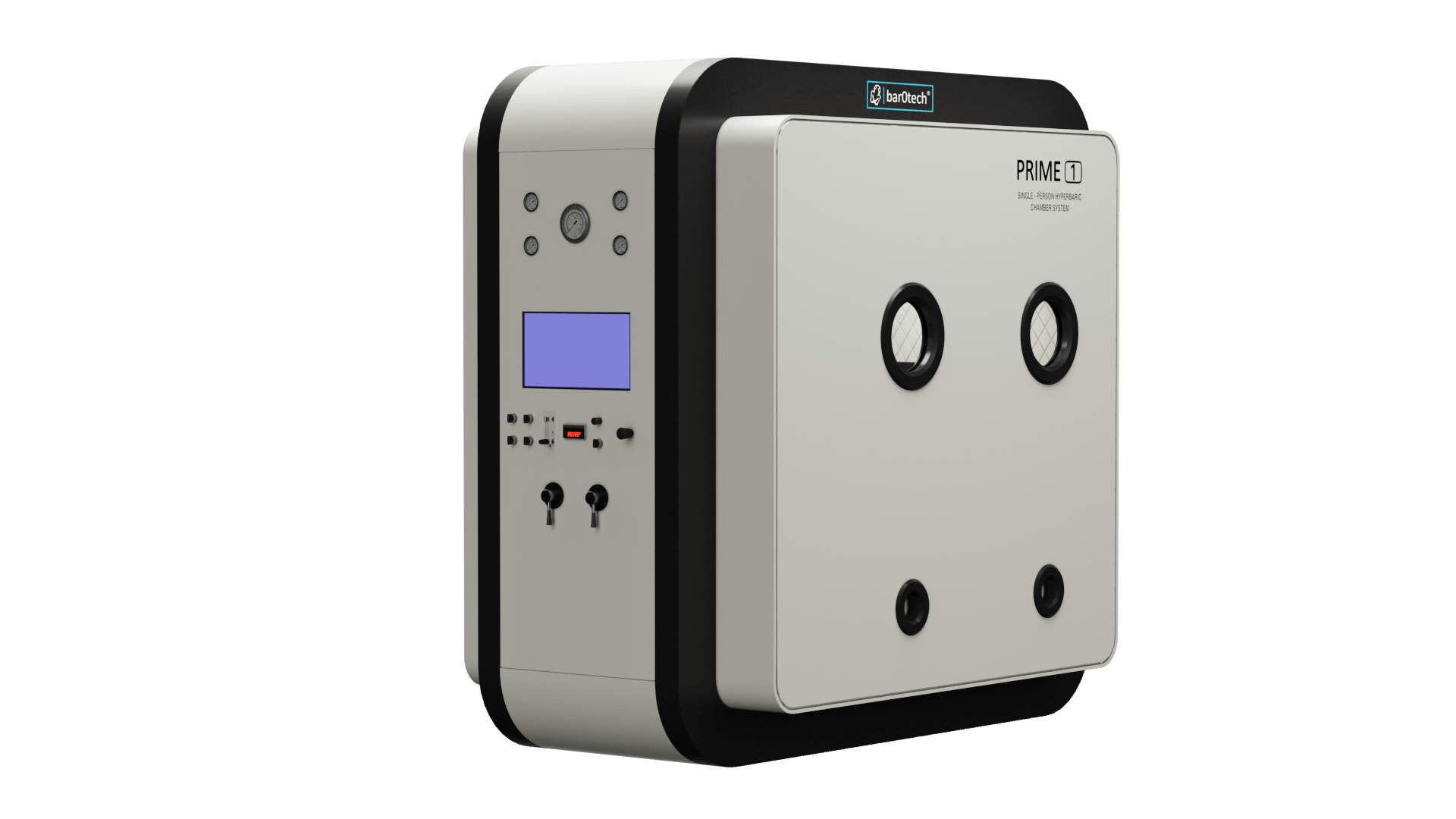

Prime 1 — Single Occupant – Suitable for private residences and home wellness suites.

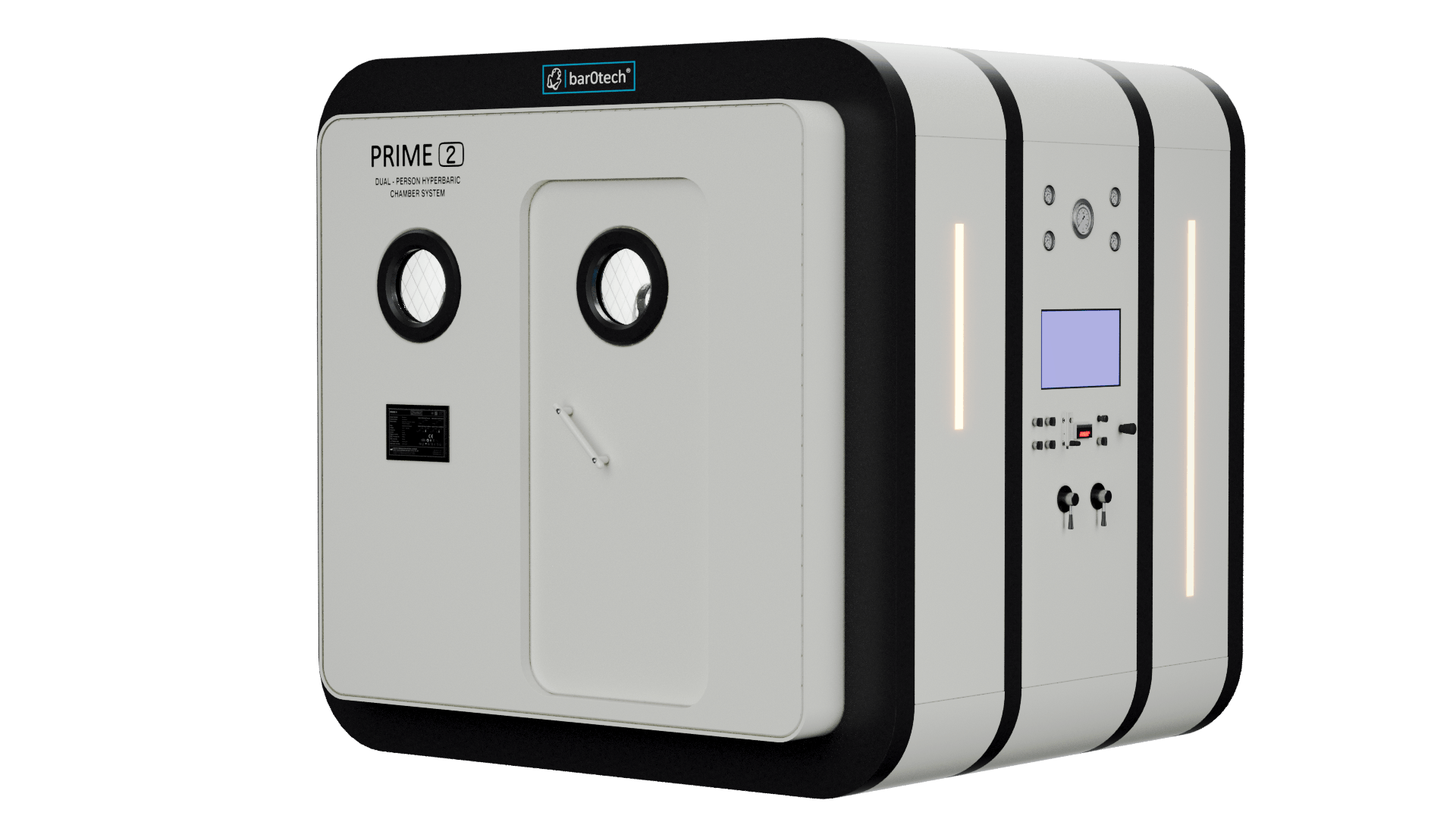

Prime 2 — Two Person – Suitable for couples, small clinics and home installations.
Prime 3 — Three Person – Suitable for clinics, wellness centres and sports facilities.

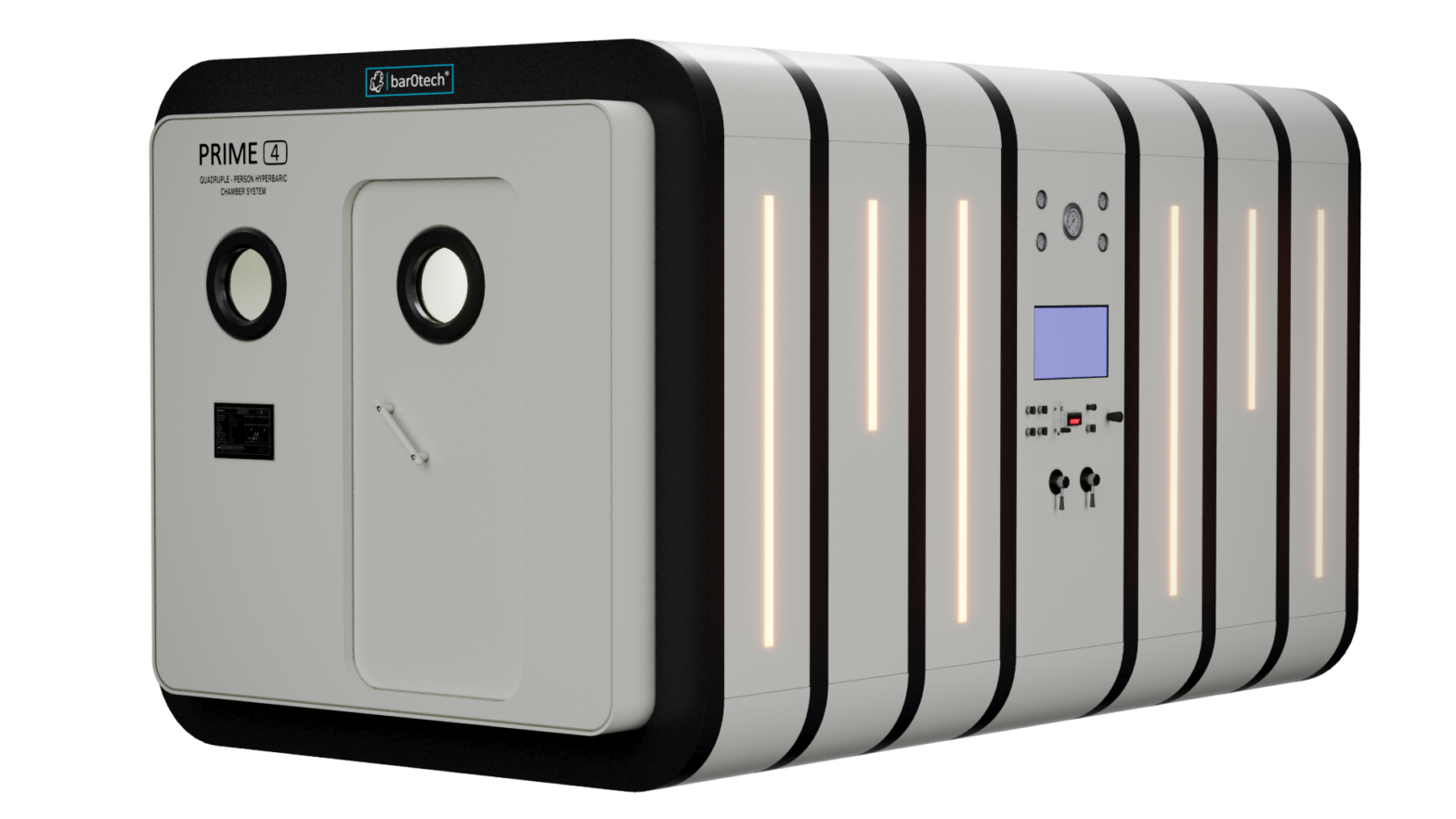

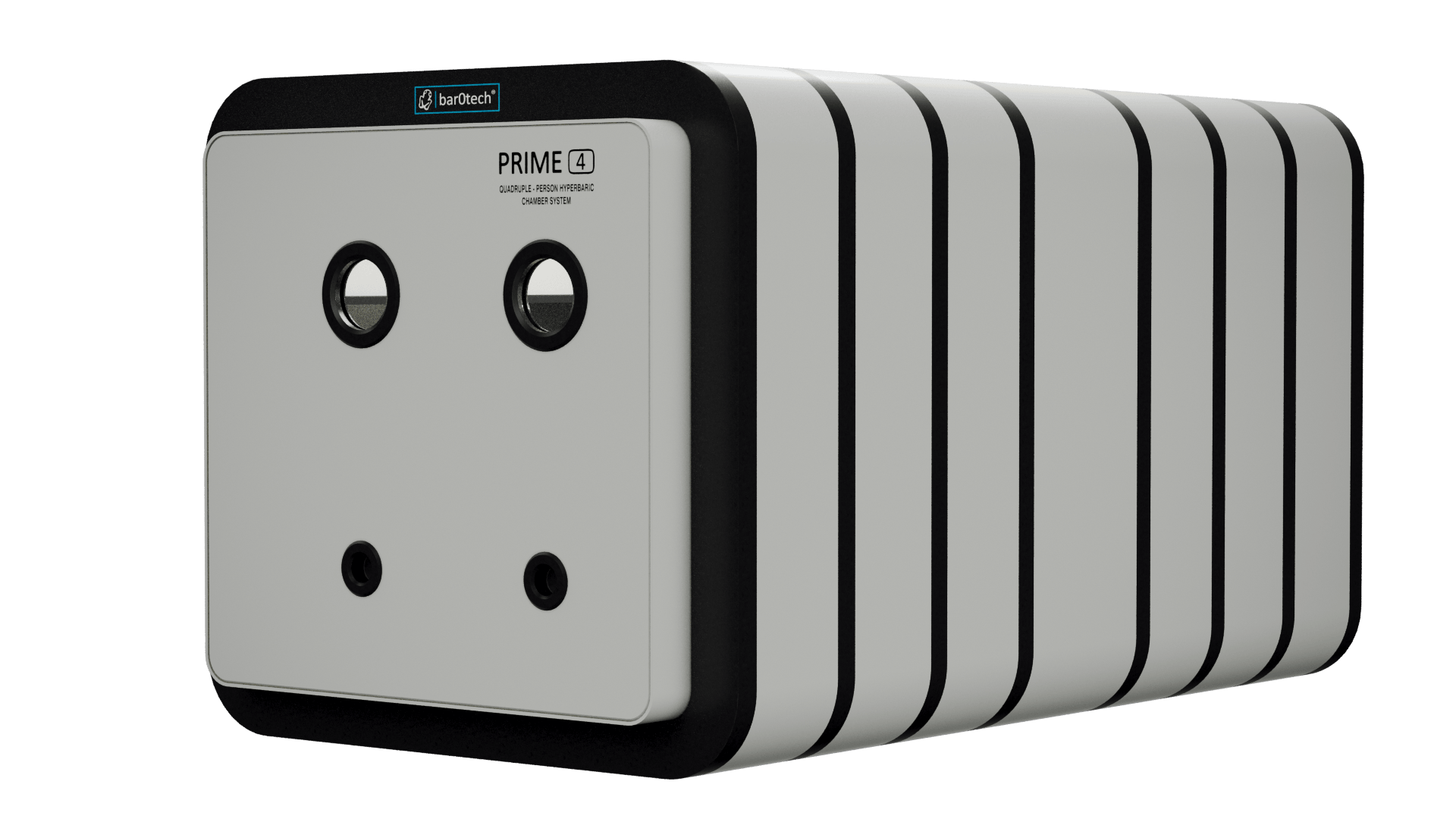

Prime 4 — Four Person – Suitable for clinics, medical facilities and high-throughput wellness businesses.

Modular Installation Every chamber in the Prime Square Series is modular. Units can be manufactured and shipped before being disassembled and reassembled on site, helping make installation possible in upper floors, converted spaces, restricted-access locations and international installations where positioning a traditional single-piece cylindrical chamber may be difficult.

Certification & Standards

93/42/EEC Medical Device Directive (Medical CE)
ISO 13485 — Medical Devices Quality Management Systems
ISO 9001 — Quality Management Systems
ISO 14001 — Environmental Management Systems
ISO 45001 — Health and Safety Management Systems
2014/68/EU Pressure Equipment Directive (PED)
NFPA 99 — Hyperbaric Fire Suppression System
EN 60601-1 — Medical Electrical Equipment
AD 2000 Merkblatt
EN 14931 — Pressure Vessels for Human Occupancy
ASME PVHO-1 — Safety Standard for Pressure Vessels for Human Occupancy
EN 13445 — European Standard for Unfired Pressure Vessels
EN 12021 — Respiratory Protective Devices
ISO 25051 — Systems and Software Engineering

Third-Party Verification

Notified Body: Szutest Germany (CE 2975)
Third-Party Verification: Intertek UK and TUV NORD Germany

Commissioning & Support

Operator training
Preventative maintenance training
Emergency scenario training
Commissioning and certification support
Factory defect warranty
Two years of technical support as standard

Pricing Price on application. Please contact Origin Oxygen to discuss configuration requirements and request a full quotation.

View Certifications & Standards

Prime Square Series Hyperbaric Oxygen Chamber

PRICE ON APPLICATION

REQUEST FULL QUOTE

The Prime Square Series is a medical-grade hyperbaric oxygen chamber platform featuring Barotech’s innovative Square Edge architecture. Available in 1, 2, 3 and 4-person configurations, the modular chamber design provides increased usable internal space while allowing units to be disassembled and reassembled for installation in restricted-access environments.

Available in 1–4 person configurations. Price on application.
